NerVE: Nonlinear Eigenspectrum Dynamics in LLM Feed-Forward Networks

Attention-induced rank collapse. Dong et al. (ICML 2021) showed that self-attention possesses a strong inductive bias toward token uniformity: a pure self-attention network (when skip connections and FFNs are disabled) loses expressive power doubly exponentially with depth. They observed a tug-of-war between self-attention and FFN nonlinearities: attention collapses rank, FFN nonlinearity somehow fights back and keeps transformer networks alive. However, the mechanism of rank inflation through FFN nonlinearity has not been well understood, and their precise role is not quantified. NerVE provides the quantitative answer.

Nonlinearity-induced rank inflation. We show that FFN nonlinearities actively reinject variance into under-utilized directions of the latent space, reawakening dimensions that would otherwise remain inactive, a process we term nonlinearity-induced rank inflation. This is not a passive rescaling; the nonlinearity fundamentally reorganizes the eigenspectrum, flattening its top-heavy structure by spreading variance across a broader set of directions.

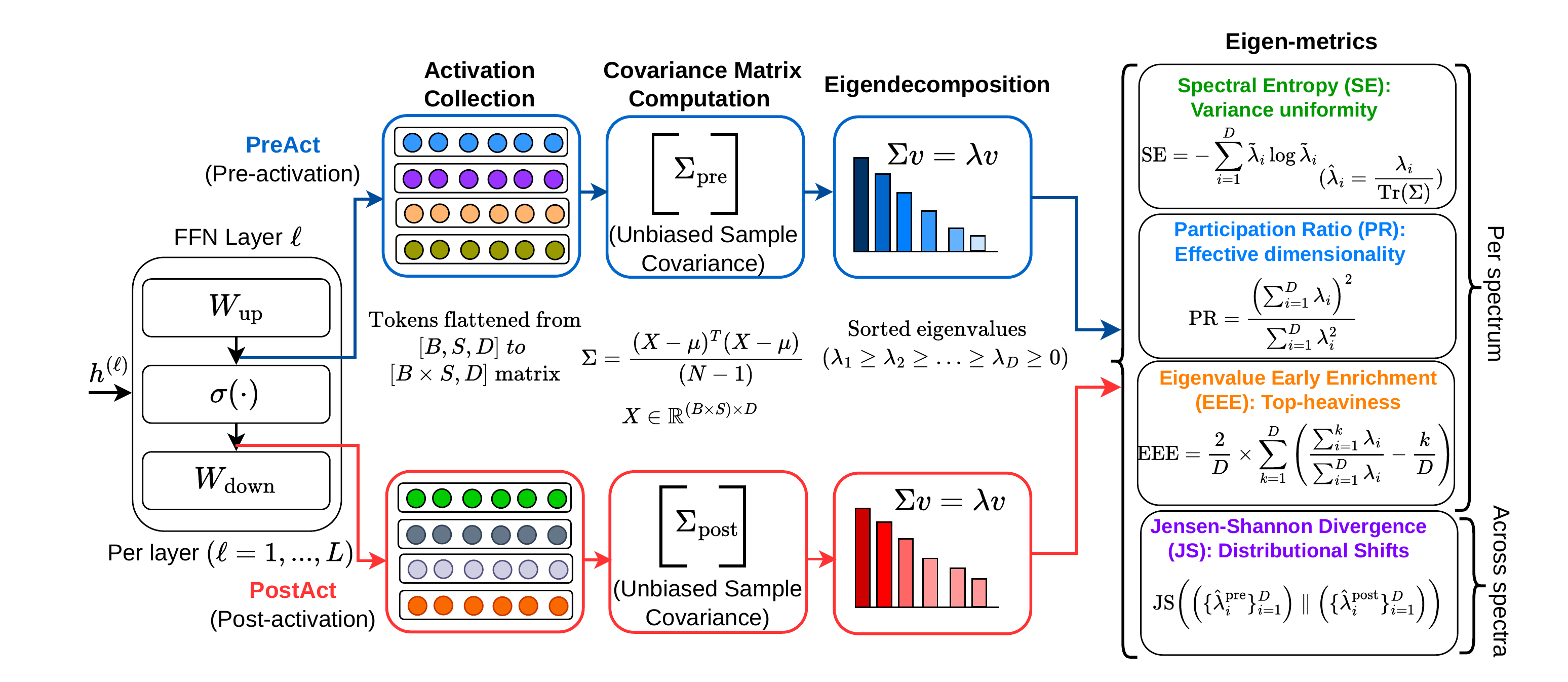

NerVE tracks this mechanism through four complementary metrics. Spectral Entropy (SE) and Participation Ratio (PR) both rise after activation, indicating broader variance distribution and higher effective dimensionality. Eigenvalue Early Enrichment (EEE) drops, confirming that the spectrum becomes less top-heavy. Jensen-Shannon divergence (JS) heatmaps reveal where this redistribution is strongest across depth and training; a structured, depth-localized transition band rather than a uniform effect.

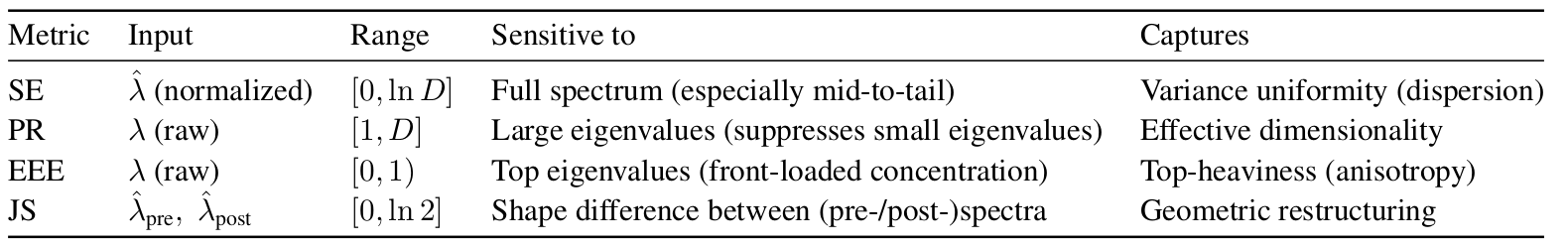

Table: Summary of NerVE's four complementary eigen-metrics, their inputs, ranges, spectral sensitivities, and what each captures about the latent space geometry. SE, PR, and EEE characterize a single spectrum; while JS quantifies the information-theoretic distance between the pre- and post-activation, and characterizes nonlinearity-induced geometric transformation. Here, λ denotes the raw eigenvalues, λ̂ the normalized eigenvalues, and D the FFN hidden dimension.

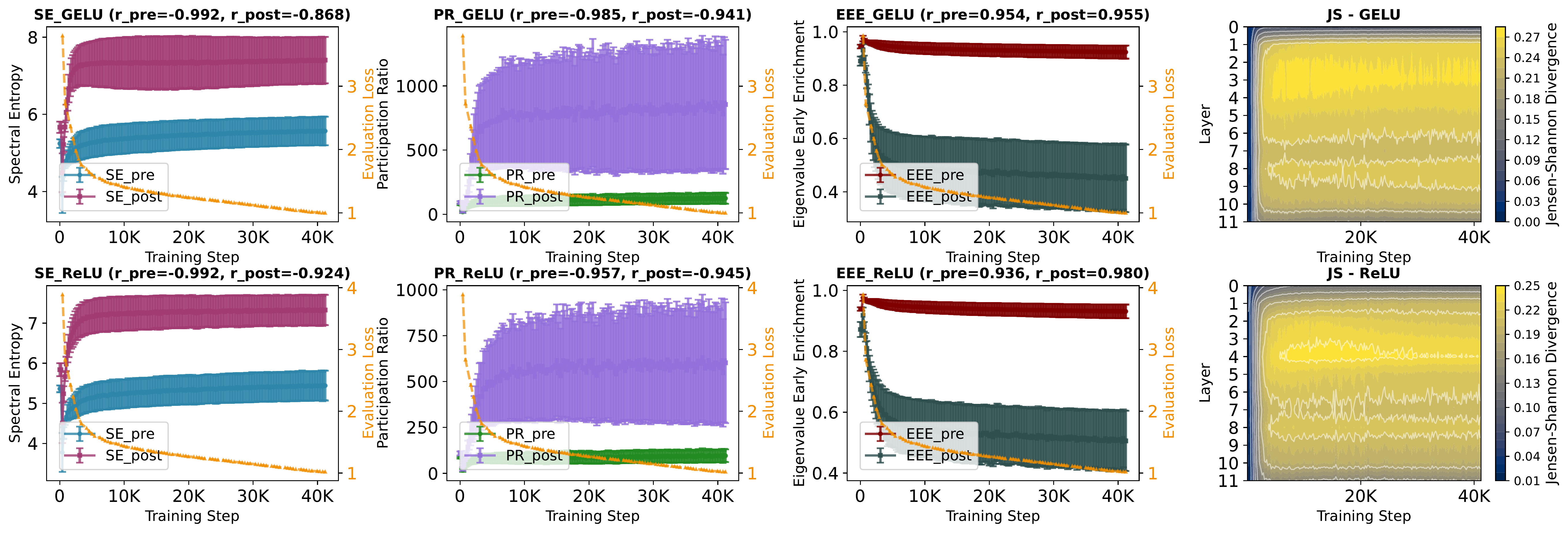

GELU vs. ReLU: who explores more of the latent space? GELU and ReLU follow the same qualitative trajectory (variance reinjection, spectral flattening, distributional reordering) but differ in pace and extent. ReLU stabilizes earlier; GELU progresses more gradually yet ultimately explores a broader subspace, correlating with its lower perplexity. All four metrics correlate strongly with evaluation loss (|r| > 0.92), confirming that spectral dynamics track generalization throughout training.

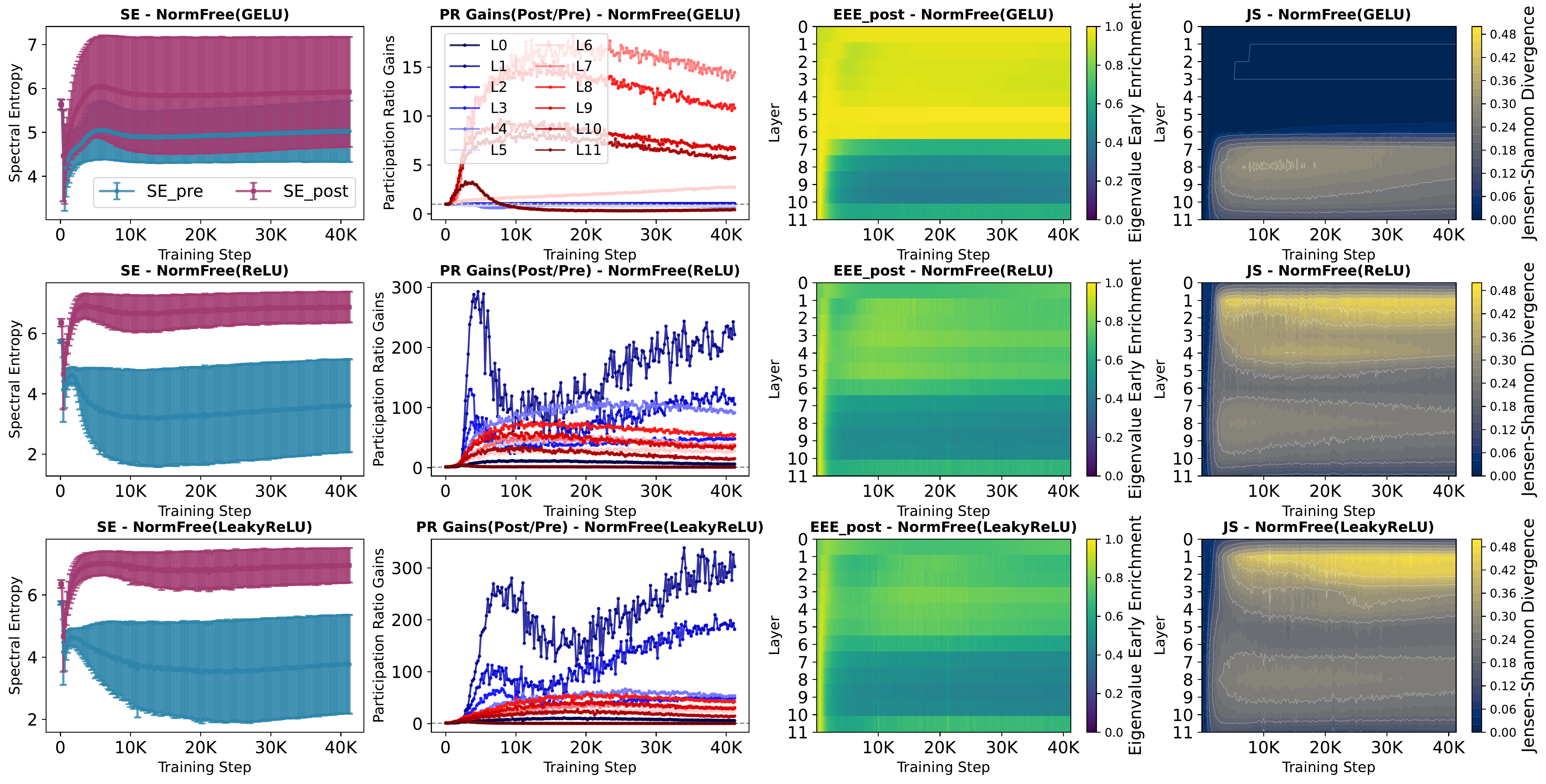

Removing LayerNorm shifts the entire burden of statistical regularization onto FFN activations, and not all activations survive. LayerNorm re-centers and rescales representations at every layer, quietly preventing variance from concentrating into a few dominant directions. Without it, the FFN nonlinearity is the last line of defense against spectral collapse. NerVE reveals that GELU and ReLU respond to this pressure in fundamentally different ways.

GELU exhibits spectral inertia: early FFNs fail to reinject variance, and information flows through a narrow subspace. In normalization-free models with GELU, the post-activation EEE remains near 1 and JS near 0 in early layers; the nonlinearity is effectively acting as a near-identity, leaving the top-heavy eigenspectrum untouched. This spectral bottleneck is the geometric signature of entropic overload (Jha & Reagen, NeurIPS ATTRIB 2024), where early attention heads are stuck in high-entropy states, starving deeper layers of representational diversity.

ReLU breaks spectral inertia through aggressive overcompensation (PR gains >200). In sharp contrast, ReLU and learnable-slope Leaky ReLU variants exhibit massive variance reinjection in the first two FFN layers, flattening the spectrum (EEE < 0.3) and producing non-overlapping pre/post spectral entropy curves. This compensatory behavior partially assumes the regularization role of LayerNorm, closing roughly 50% of the perplexity gap to the normalized baseline.

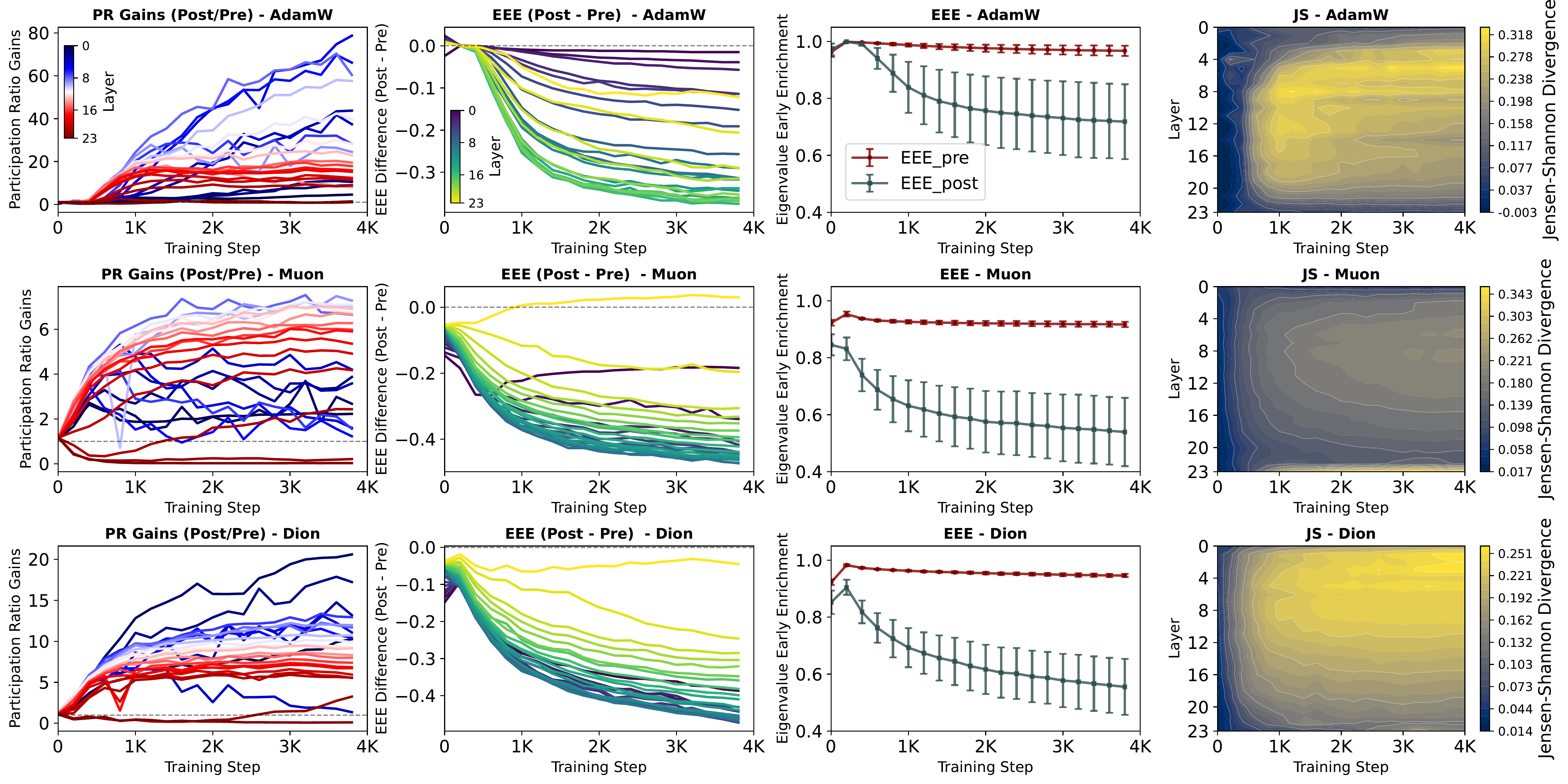

Repair or refinement: more effort does not mean better outcome. Under AdamW, FFN nonlinearities exhibit the largest PR gains and highest JS divergence across all three optimizers; they are working the hardest. But this effort is corrective, not productive: the nonlinearity spends its capacity undoing spectral collapse that the optimizer itself induced, and despite massive corrections, AdamW's post-activation effective dimensionality remains the lowest. Muon achieves the opposite: highest post-activation PR with the smallest gains and lowest JS. Its nonlinearities perform modest refinement on already healthy spectra rather than expensive repair. Dion falls between, improving over AdamW but not matching Muon's spectral efficiency. The perplexity ordering (Muon < Dion < AdamW) tracks this distinction: productive refinement outperforms heroic repair.

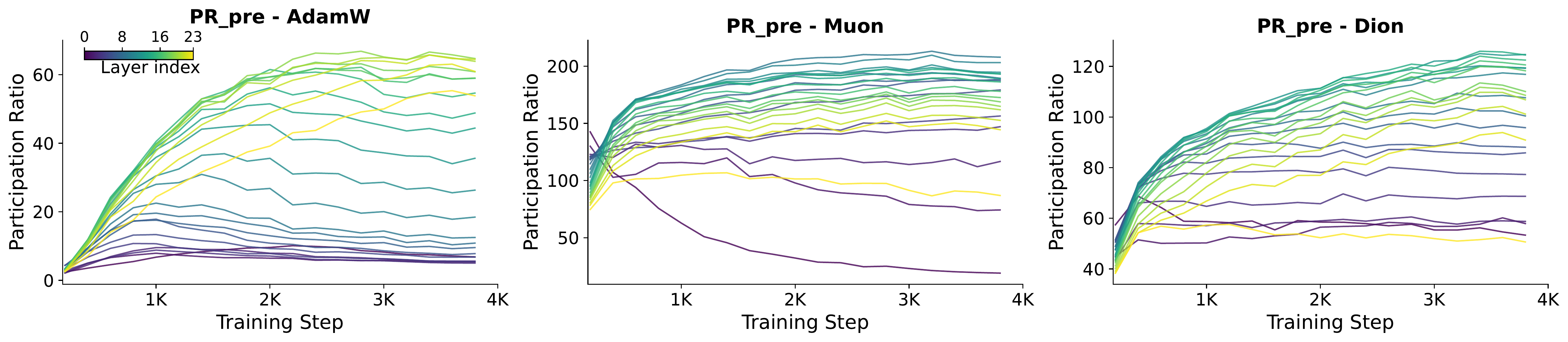

Muon preserves well-conditioned pre-activations; AdamW lets them collapse. The root cause of the repair-refinement divide lies in what each optimizer does to the pre-activation eigenspectrum. AdamW allows early-layer pre-activation PR to collapse during training; variance concentrates into a few dominant eigenmodes, handing the nonlinearity a spectrally damaged input. Muon maintains high pre-activation PR across nearly all layers throughout training, producing near-isotropic spectra before the nonlinearity even acts. Dion partially mitigates the early-layer collapse but does not match Muon's conditioning. These dynamics persist across model scales (160M, 350M) and context lengths (512, 1024), confirming that they are intrinsic to optimizer geometry rather than artifacts of a specific configuration.

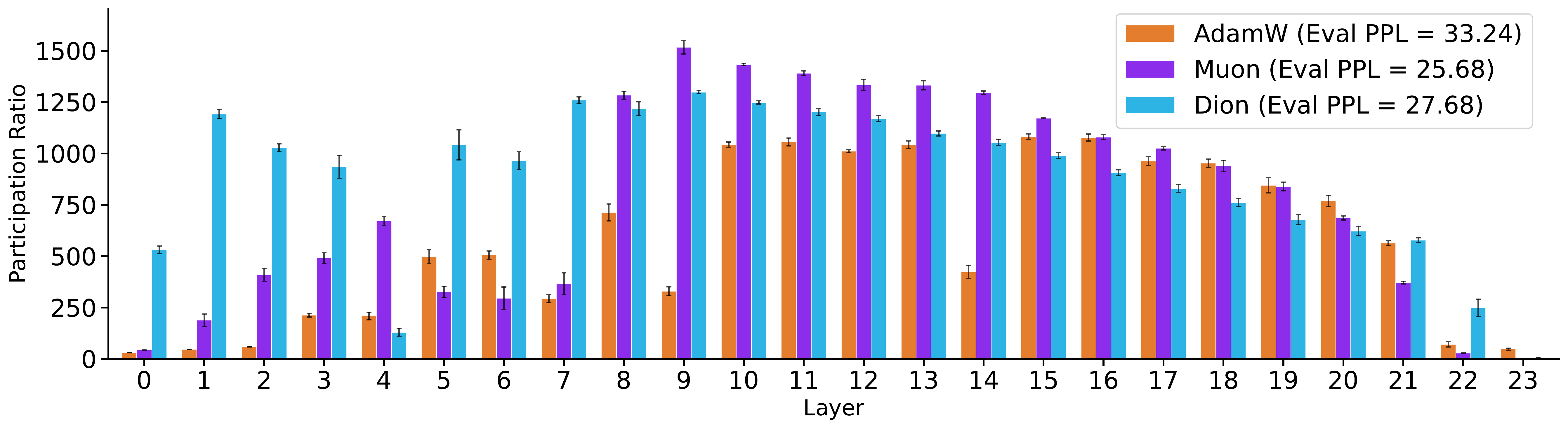

Where capacity accumulates matters more than how much is injected. Muon concentrates the highest post-activation effective dimensionality in middle FFN layers, the layers recent evidence identifies as disproportionately important for generalization (Queipo-de-Llano et al., ICLR 2026; Lad et al., NeurIPS 2025; Ikeda et al., COLM 2025; Skean et al., ICML 2025). AdamW inflates PR_post in early layers through aggressive repair but leaves middle layers underserved. Dion pushes capacity into early FFNs without yielding the best perplexity. The decisive pattern: perplexity tracks mid-layer spectral capacity, not early-layer effort. This suggests that optimizer selection should be evaluated not by aggregate training metrics but by where across depth the optimizer allocates effective representational capacity. These findings provide empirical evidence that optimizer geometry introduces qualitatively distinct representational biases, not merely different convergence rates, aligning with the recent position that optimizers should be leveraged as explicit sources of inductive biases (Pascanu et al., 2025).

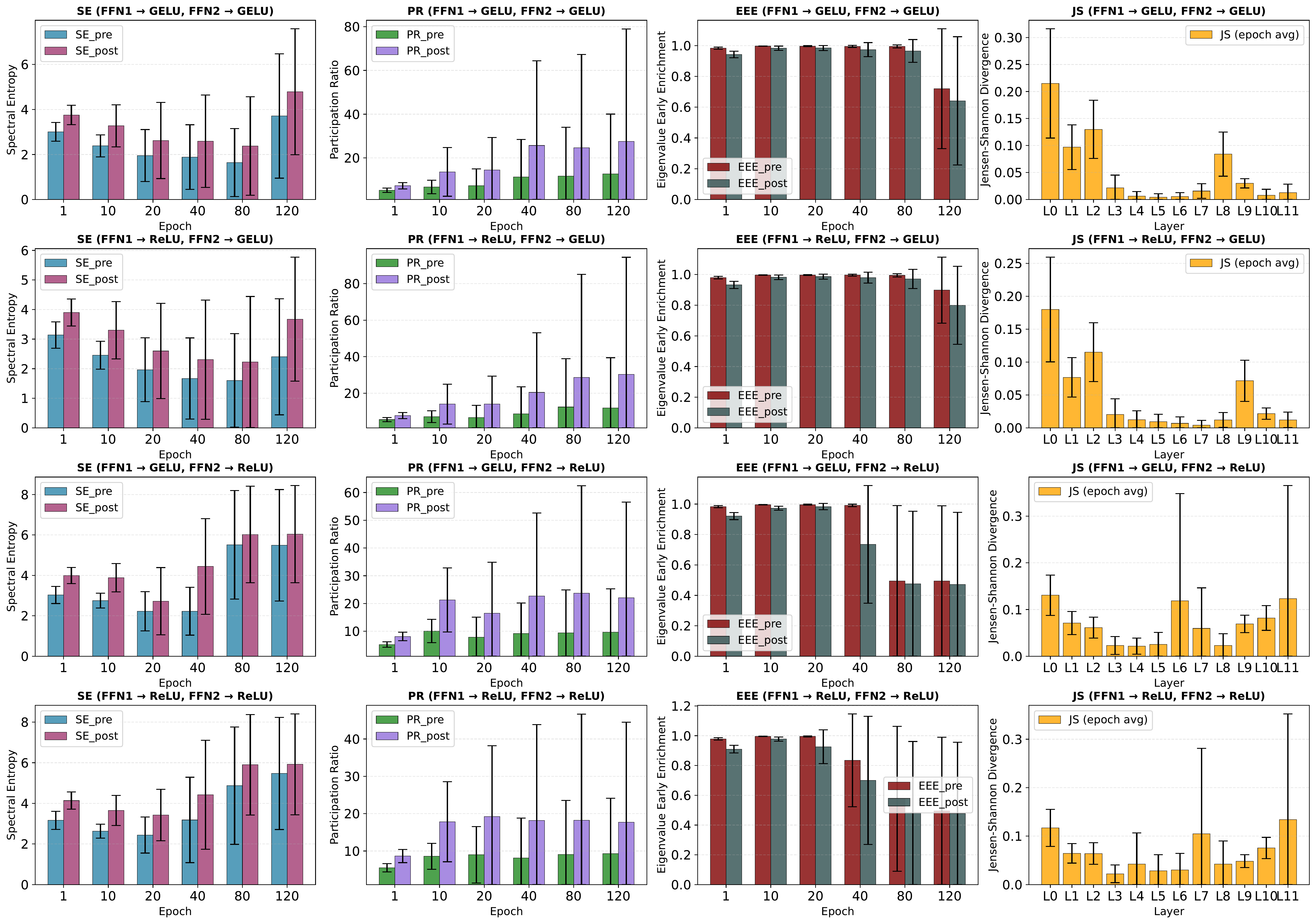

The variance reinjection pattern is not transformer-specific; it emerges wherever deep FFNs meet nonlinearity. MLP-Mixer removes self-attention entirely, isolating the contribution of FFN nonlinear transformations from attention-specific dynamics like rank collapse. We apply NerVE to MLP-Mixer (B/16) on CIFAR-100, a pure-MLP architecture with no self-attention. The same core pattern holds: post-activation SE and PR rise above pre-activation throughout training, EEE drops, and the nonlinearity actively flattens the eigenspectrum across all four activation configurations tested. NerVE further reveals that activation choice in the channel-mixing MLP (the component analogous to transformer FFNs) has a far stronger spectral impact than activation choice in the token-mixing MLP, identifying which nonlinearity matters most. The optimizer story also extends: SGD achieves higher post-activation SE and PR than Adam throughout training, correlating with better accuracy (68.07% vs 66.96%), confirming that optimizer-dependent spectral dynamics are not a transformer-specific phenomenon.

NerVE metrics are not just descriptive; they track generalization with near-perfect correlation. Pre-activation SE and PR correlate with validation loss at |r| ≥ 0.97 across every FFN width configuration tested, throughout training. This means spectral health can be monitored with a single forward pass, no gradient computation, no validation set evaluation. Post-activation correlations strengthen as FFN width increases, suggesting that a modest width is needed before the spectral signal becomes generalization-predictive.

Short runs can rank architectures without training to convergence. Across eight FFN width configurations and multiple activation variants, final spectral metric values correlate strongly with final perplexity (|r| ≥ 0.85). The one notable exception: normalization-free ReLU, where pre-activation correlations weaken while post-activation correlations strengthen. This directly reflects the compensatory dynamics identified earlier: when nonlinearity overcompensates, the post-activation spectrum becomes the more informative diagnostic. NerVE tells you not only what to measure, but which measurement to trust in each regime.
